Initialization

Instance Methods​

Running OvenPlayer​

You need to obtain the OvenPlayer Instance to use the OvenPlayer API. You can typically use the OvenPlayer Instance returned after OvenPlayer.create(). However, we will inform you of some ways to access the OvenPlayer Instance in debugging or unexpected situations.

create()​

const player = OvenPlayer.create(container, options);
ParamsTypeMemo
containerString | HTMLElementDOM Element
optionsObjectPlease see the Options section below.

Accessing default instance​

You run the player with the DOM Element and Options with ID. It returns the Instance of the player.

const player = OvenPlayer.create(...);
...
player.play();

Viewing all instances within a web page​

OvenPlayer.getPlayerList()
(3) [{…}, {…}, {…}]
0: {on: ƒ, trigger: ƒ, off: ƒ, once: ƒ, init: ƒ, …}
1: {on: ƒ, trigger: ƒ, off: ƒ, once: ƒ, init: ƒ, …}
2: {on: ƒ, trigger: ƒ, off: ƒ, once: ƒ, init: ƒ, …}
length: 3
example
for(let i = 0 ; i < OvenPlayer.getPlayerList().length; i++){
    OvenPlayer.getPlayerList()[i].pause();
}

Querying a single instance using an index​

OvenPlayer.getPlayerByIndex(0)
{on: ƒ, trigger: ƒ, off: ƒ, once: ƒ, init: ƒ, …}
// example
if(OvenPlayer.getPlayerByIndex(0)){
    OvenPlayer.getPlayerByIndex(0).pause();
}

Querying a single instance using the DOM Element ID​

OvenPlayer.getPlayerByContainerId("player")
{on: ƒ, trigger: ƒ, off: ƒ, once: ƒ, init: ƒ, …}

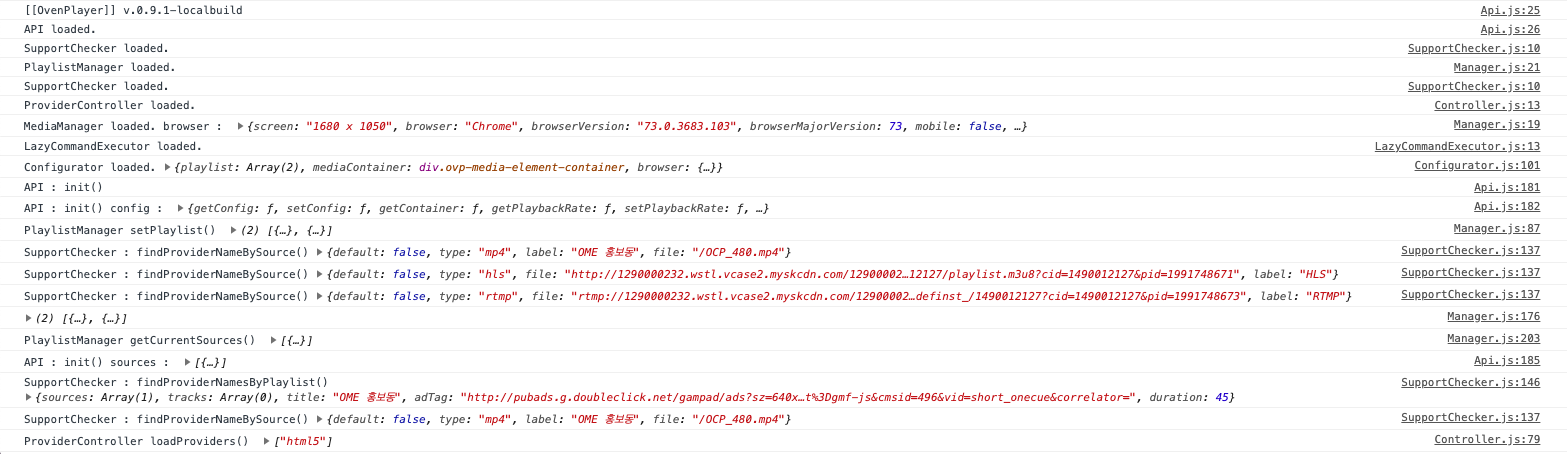

Setting the log​

You set up to show all logs that occur in the OvenPlayer that is on the web page.

OvenPlayer.debug(true);

Options​

You can use the following options to initialize the player:

aspectRatio​

You can set the aspect ratio of the player to match the aspect ratio of the video playing. Any aspect ratio can be set such as "21: 9", "4: 3", "1: 1".

TypeDefaultRequired
String'16:9'false

title​

You can display a title.

TypeDefaultRequired
Stringnullfalse

waterMark​

You can set the watermark image on the player. See the following for detailed settings.

Using watermark Image​

// watermark example
var player = OvenPlayer.create("player", {
    waterMark: {
        image: '/path/to/watermark/image.png',
        position: 'top-left',
        y: '20px',
        x: '20px',
        width: '40px',
        height: '30px',
        opacity: 0.7
    },
    sources: [...]
});

waterMark.image​

Sets the URL of the watermark image.

TypeDefaultRequired
Stringnulltrue

Using watermark text​

// watermark example
var player = OvenPlayer.create("player", {
    waterMark: {
        text: 'Text for water mark',
        font: {
            'font-size': '20px',
            'color': '#fff',
            'font-weight': 'bold'
        }
        position: 'bottom-right'
    },
    sources: [...]
});

waterMark.text​

Sets the text of the watermark.

TypeDefaultRequired
Stringnulltrue

waterMark.font​

Sets the font style of the watermark text. All Font CSS key-value available (e.g. font-size, font-weight, color...)

TypeDefaultRequired
Objectnullfalse

Watermark common settings​

waterMark.position​

Sets the location where the watermark is placed. top-right, top-left, bottom-right, bottom-left are available.

TypeDefaultRequired
String'top-right'false

waterMark.y

Sets the distance from the top or bottom specified by waterMark.position. All CSS value available (e.g. 10px, 5%, 1rem...)

TypeDefaultRequired
String5%false

waterMark.x

Sets the distance from the left or right specified by waterMark.position. All CSS value available (e.g. 10px, 5%, 1rem...)

TypeDefaultRequired
String2.8%false

waterMark.width

Sets the width of the watermark image. The default value auto means set to the original width of the image. All CSS value available (e.g. 10px, 5%, 1rem...)

TypeDefaultRequired
Stringautofalse

waterMark.height

Sets the height of the watermark image. The default value auto means set to the original height of the image. All CSS value available (e.g. 10px, 5%, 1rem...)

TypeDefaultRequired
Stringautofalse

waterMark.opacity

Sets the URL of the watermark image.

TypeDefaultRequired
Number0.7false

autoStart ​

TypeDefaultRequired
booleanfalsefalse

You can choose whether to play OvenPlayer automatically when the source is loaded. However, depending on the Browser Policy, it may restrict autoplay at any time.

autoFallback​

TypeDefaultRequired
booleanTruefalse

If set to true, if playback fails when multiple playback sources are set, the playback source set to the next will be played automatically.

controls​

TypeDefaultRequired
booleantruefalse

If you don't want to show the control bar on OvenPlayer, change this option to false.

loop​

TypeDefaultRequired
booleanfalsefalse

You can play a video repeatedly using this option.

showBigPlayButton​

TypeDefaultRequired
booleantruefalse

You can choose whether to show or hide the big play button.

disableSeekUI​

TypeDefaultRequired
booleanfalsefalse

You can disable users to seek using a progress bar or keyboard interaction.

showSeekControl​

TypeDefaultRequired
booleanfalsefalse

You can choose whether to show or hide the quick seek buttons.

seekControlInterval​

peDefaultRequired
Number10false

You can set seek interval of the quickly seek button.

expandFullScreenUI​

peDefaultRequired
booleanfalsefalse

You can enable users to enter or exit the full screen with double click the player.

iOSFakeFullScreen​

peDefaultRequired
booleanfalsefalse

You can use fake full screen ui (Make player full size on screen) on iOS.

mute​

TypeDefaultRequired
booleanfalsefalse

If you set this option to true, it will run in mute mode.

timecode​

TypeDefaultRequired
booleantruefalse

You set whether to display time or frame information in the control bar on OvenPlayer. If framerate is not provide to source this option will always be true.

playbackRate​

TypeDefaultRequired
Number1false

You can set the playback speed with this option.

playbackRates​

TypeDefaultRequired
Array of Number[2, 1.5, 1, 0.5, 0.25]false

You can set the range of video playback speed. The playback speed range is 0.25 to 4x.

currentProtocolOnly​

TypeDefaultRequired
Booleanfalsefalse

It shows only current protocols. (*If you want to show only quality information when there are various protocols and various quality information together, please use it.)

sources​

If you have multiple protocols or multiple resolutions for a single content, you can register them at once using sources. Also, multiple protocols can support a broader range of browsers, and multiple resolutions allow viewers to select video quality.

OvenPlayer will play a video in the order of the protocol or resolution you entered in sources and will automatically play the next source if playback fails.

If a label is set, it will be displayed in the player source selection UI. The framerate setting only works on VOD and is required to display the time in frames in the progress bar.

let player = OvenPlayer.create("player", {sources : [
    {
        type : "webrtc",
        file : "wss://demo.ovenmediaengine.com/app/stream",
        label: "WebRTC Stream", // optional
        framerate: 60 // optional
    },
    {
        type : "hls",
        file : "wss://demo.ovenmediaengine.com/app/stream/playlist.m3u8",
        label: "HLS Stream", // optional
        framerate: 60 // optional
    }
] });

tracks​

TypeDefaultRequired
Array of Object-false

You can register the URL information of the subtitle file shown with a video. OvenPlayer supports *.vtt, *.srt, and *.smi as subtitle file formats.

example
let player = OvenPlayer.create("player", {sources : {
        type : "mp4",
        file :  "https://path.to/your_video",
        label : "360P"
    ],
    tracks : [
        {
            kind : "captions",
            file :  "https://path.to/your_caption.vtt",
            label : "KO vtt"
        },
        {
            kind : "captions",
            file :  "https://path.to/your_caption.srt",
            label : "KO srt"
        },
        {
            kind : "captions",
            file :  "https://path.to/your_caption.smi",
            label : "KO smi"
        }
    ]
});

section​

You can cut the playback before the time of sectionStart and cuts the playback after the time of sectionEnd. The example below will only play between 300 seconds to 600 seconds of the stream.

sources: [
    {
        type: 'hls',
        file: 'https://test-streams.mux.dev/x36xhzz/x36xhzz.m3u8',
        sectionStart: 300,
        sectionEnd: 600,
    }
]

overrideNative​

You can prevent the use of some browser's native HLS capabilities by setting the flag overrideNative to the video source. This forces the use of Media Source Extensions to provide a more consistent experience between browsers.

sources: [
    {
        type: 'hls',
        file: 'https://test-streams.mux.dev/x36xhzz/x36xhzz.m3u8',
        overrideNative: true,
    }
]

volume​

TypeDefaultRequired
Number100false

You can set the initial volume when a user plays a video in OvenPlayer.

adTagUrl​

TypeDefaultRequired
String-false

You can set the URL of the Video Ad Serving Template (VAST) to play in OvenPlayer. Also, OvenPlayer supports VAST 4, VAST 3, VAST 2, VPAID 2 (HTML 5), and VMAP 1.0.1.

For more information, see Support and Compatibility.

let player = OvenPlayer.create("player", {
    adTagUrl : "https://pubads.g.doubleclick.net/gampad/ads?...",
    sources : {
        type : "mp4",
        file :  "https://path.to/your_video",
        label : "360P"
    ]
});

adClient​

TypeDefaultRequired
String"googleima"false

Sets whether to Google IMA or Simple VAST the Ads client when player initialize. "googleima" or "vast".

image​

TypeDefaultRequired
String-false

You can set the URL of a poster image / thumbnail. The image file is displayed prior to the player showing the first frames of the video.

playlist​

TypeDefaultRequired
Array of Object-false
FieldTypeDefaultRequired
titleStringsources[0].labelfalse
imageString-false
durationNumber-false
adTagUrlString-false
sourcesObject | Array of Object-true
tracksArray of Object-false

playlist has multiple sources mentioned above. You can explore between playlists, and it automatically plays the next content. Also, you can assign ads and captions for each playlist.

let player = OvenPlayer.create("player", {
    playlist : [
        {
            title : "01",
            adTagUrl : "https://pubads.g.doubleclick.net/gampad/ads?...",
            image : "https://path.to/your_video_thumbnail.jpeg",
            duration : 7343,
            sources: [
                {
                    type : "mp4",
                    file :  "https://path.to/your_video",
                    label : "360P"
                }
            ],
            tracks: [
                {
                    kind : "captions",
                    file :  "https://path.to/your_caption.vtt",
                    label : "KO vtt"
                }
            ]
        },
        {
            title : "02",
            adTagUrl : "https://pubads.g.doubleclick.net/gampad/ads?...",
            image : "https://path.to/your_video_thumbnail2.jpeg",
            duration : 8333,
            sources: [
                {
                    type : "mp4",
                    file :  "https://path.to/your_video2",
                    label : "360P"
                },
                {
                    type : "mpd",
                    file :  "https://path.to/your_video.mpd",
                    label: "360P DASH"
                }
            ],
            tracks: [
                {
                    kind : "captions",
                    file :  "https://path.to/your_caption2.vtt",
                    label : "KO vtt"
                }
            ]
        }
    ]
});

hidePlaylistIcon​

TypeDefaultRequired
booleanfalsefalse

You can set whether to show or hide the playlist button when the playlist is initialized.

webrtcConfig​

When playing WebRTC, you can set WebRTC specific configurations.

webrtcConfig.timeoutMaxRetry & webrtcConfig.connectionTimeout​

TypeDefaultRequired
timeoutMaxRetryNumber0false
connectionTimeoutNumber10000false

Set the timeout from the start of signaling until it is connected with OvenMediaEngine. connectionTimeout sets the maximum allowable time until a connection is established. timeoutMaxRetry sets the number of times the player will automatically retry the connection when the maximum allowed time has elapsed. When retrying a connection due to a timeout, the player does not display an error message. If the connection fails after retries for timeoutMaxRetry, the player throws a timeout error. If timeoutMaxRetry is set to 0, no timeout processing is performed.

webrtcConfig.playoutDelayHint​

TypeDefaultRequired
Numbernullfalse

Set the play out delay hint for WebRTC playback. If the browser supports it, the initial playback will be delayed by the set value.

webrtcConfig.iceServers​

TypeDefaultRequired
Objectnullfalse

You can set a list of STUN or TURN servers.

let player = OvenPlayer.create("player", {
    sources : [
        {
            type : "webrtc",
            file : "ws://source"
        }
    ],
    webrtcConfig: {
        iceServers: [
            {
                "urls": [
                    "stun:64.233.189.127:19302",
                    "stun:[2404:6800:4008:c07::7f]:19302"
                ]
            },
            {
                "urls": [
                    "turn:108.177.125.127:19305?transport=udp",
                    "turn:[2404:6800:4008:c01::7f]:19305?transport=udp",
                    "turn:108.177.125.127:19305?transport=tcp",
                    "turn:[2404:6800:4008:c01::7f]:19305?transport=tcp"
                ],
                "username": "username",
                "credential": "credential"
            }
        ]
    }
);

webrtcConfig.iceTransportPolicy ​

TypeDefaultRequired
Objectnullfalse

You can ice transport policy, which can limit the transport policies of the ICE candidates to be considered during the connection process.

iceTransportPolicyDescription
"all"All ICE candidates will be considered.
"public"Only ICE candidates with public IP addresses will be considered. Removed from the specification's May 13, 2016 working draft.
"relay"Only ICE candidates whose IP addresses are being relayed, such as those passed through a TURN server, will be considered.
let player = OvenPlayer.create("player", {
    sources : [
        {
            type : "webrtc",
            file : "ws://source"
        }
    ],
    webrtcConfig: {
        iceTransportPolicy: "all"
    }
);

hlsConfig​

When playing HLS, you can set hls.js detailed tuning options (https://github.com/video-dev/hls.js/blob/master/docs/API.md#fine-tuning).

TypeDefaultRequired
Objectnullfalse

dashConfig​

When playing DASH, you can set configuration(https://cdn.dashjs.org/latest/jsdoc/module-Settings.html) parameters of Dash.js MediaPlayer.

TypeDefaultRequired
Objectnullfalse
