Publish via RTSP Pull (CCTV)

If you need to convert your RTSP-based videos, such as CCTV, IP camera, etc., into real-time streams in your service, you can use the RTSP Pull feature in OvenMediaEngine Enterprise on AWS.

With this approach, OvenMediaEngine connects directly to an external RTSP (media source) and pulls the video (pulling), allowing you to build a streaming environment easily without any additional streaming tools.

ItemSupported
ContainerRTP
TransportUDP / TCP
CodecH.264, H.265, Opus, AAC

Start Publishing an RTSP Pull Stream​

Create an RTSP Pull Stream and enter information​

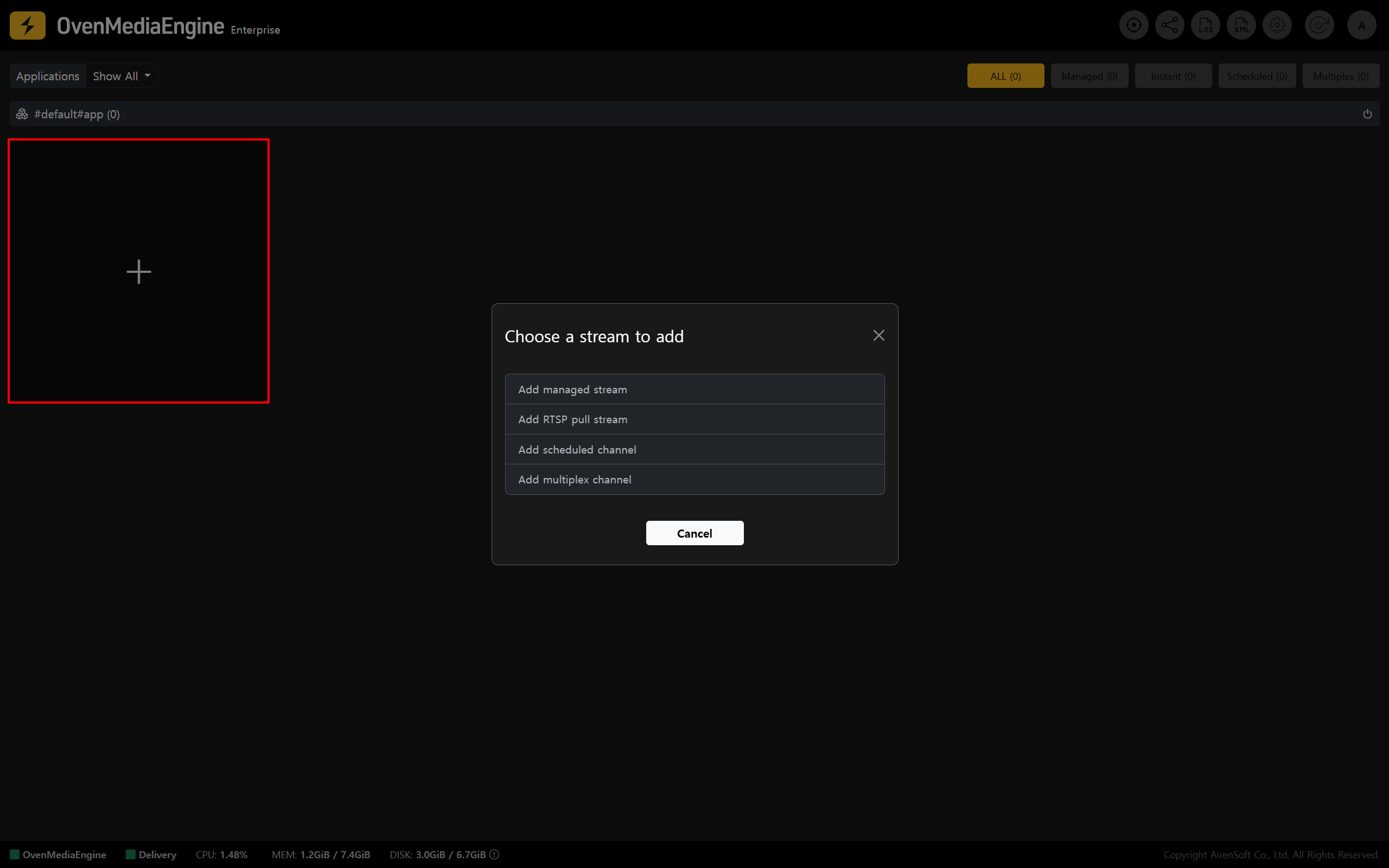

  1. Stream List on the Web Console (main page), click [+] in the page, then select [Add RTSP pull stream] from the menu.

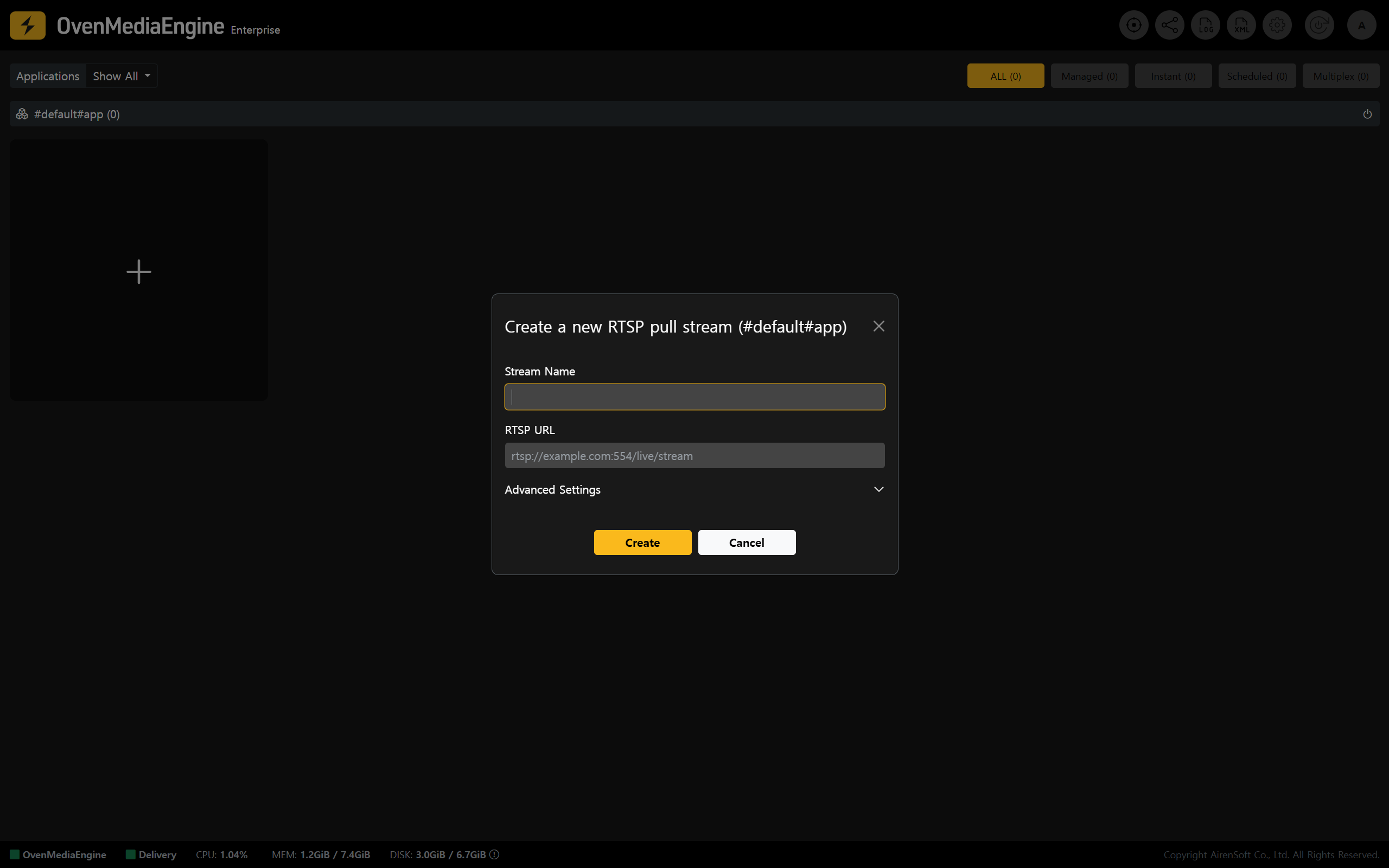

  1. Enter a [Stream Name] that is easy to identify, and the [RTSP URL] to connect to.
tip

A typical RTSP URL format is rtsp://{ID}:{Password}@{IP}:{Port}/path, but formats may vary by product. Please check the RTSP URL format recommended by your vendor.

Ensuring stability with Advanced Settings (Optional)​

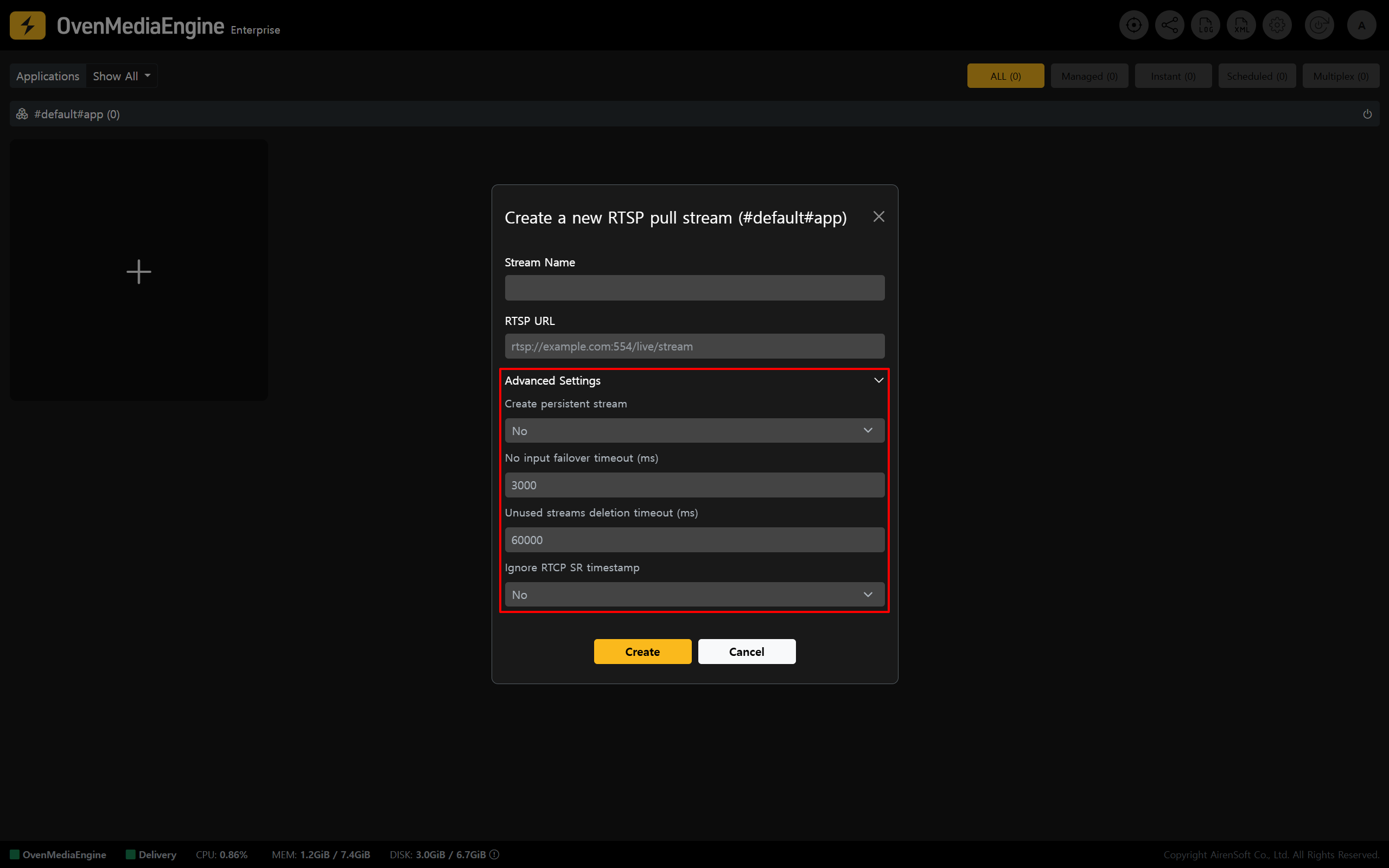

  • You can additionally use [Advanced Settings] to configure streaming behavior optimized for your network environment.
info

If you are using RTSP Pull Streams for the first time, we recommend creating the stream using the default system settings. If further optimization is needed for your environment later, update the stream after adjusting the relevant options.

ValueInput RangeDescription
Create persistent stream

Yes | No

  • Default: No

Keeps the stream persistent

  • If set to Yes, the stream will not be deleted automatically after creation and will remain until an explicit Delete request is made.
No input failover timeout (ms)

0~

  • Default: 3000

If no media source is received as input (ingress) for the specified period (milliseconds), the stream is deleted.

  • This rule is ignored if Create persistent stream is set to Yes.
Unused streams deletion timeout (ms)

0~

  • Default: 60000

If there is no output (egress) for the specified period (milliseconds), the stream is deleted.

  • This rule is ignored if Create persistent stream is set to Yes.
Ignore RTCP SR timestamp

Yes | No

  • Default: No

Selects whether to wait for RTCP SR (Sender Report), which includes timestamp information.

  • If set to Yes, the stream starts immediately without waiting for RTCP SR, so the first video appears faster. However, stability may vary depending on any device.

Verify stream output and status​

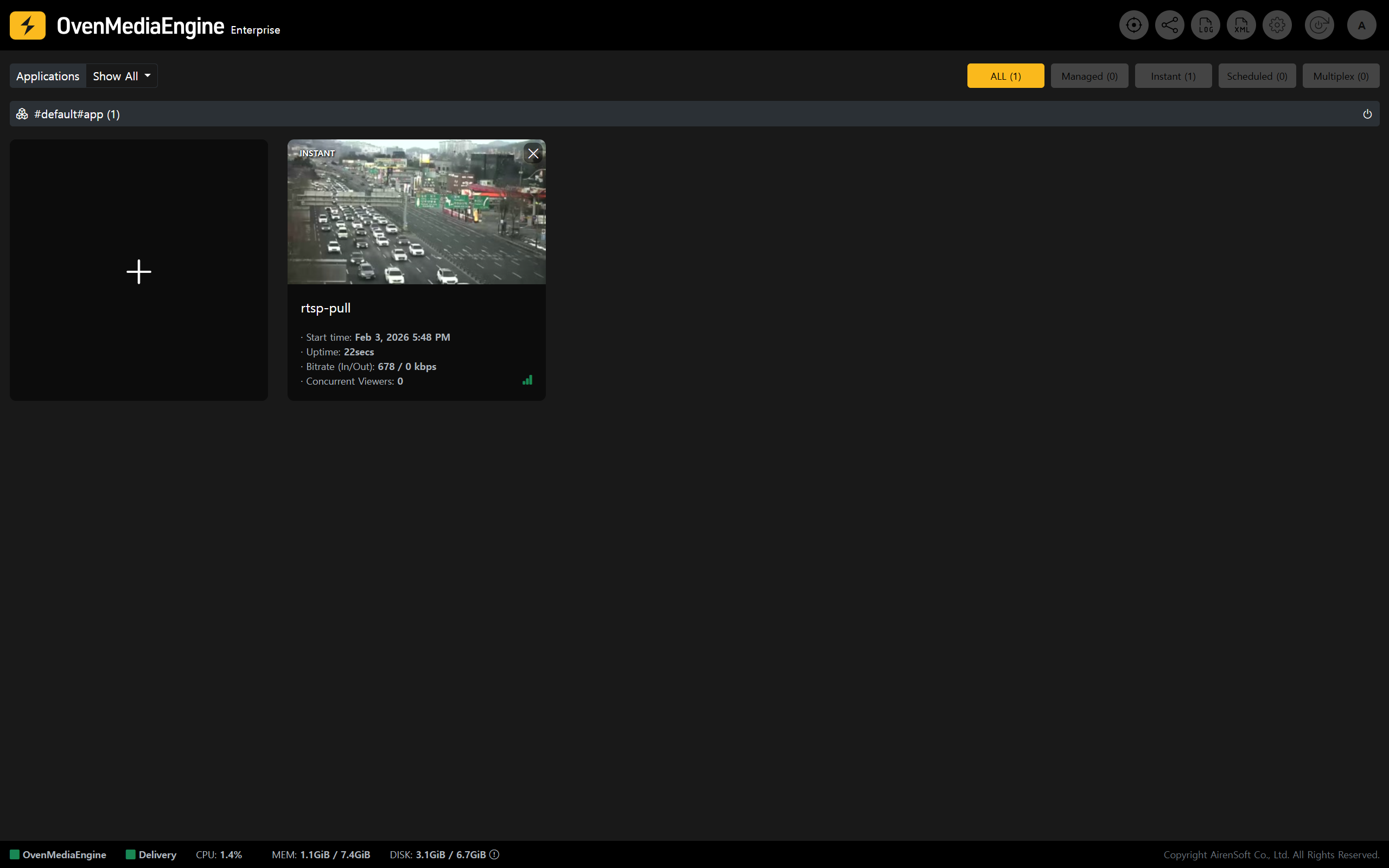

  1. Stream List on the Web Console, verify that the media source pulled via RTSP is being delivered successfully through OvenMediaEngine Enterprise.

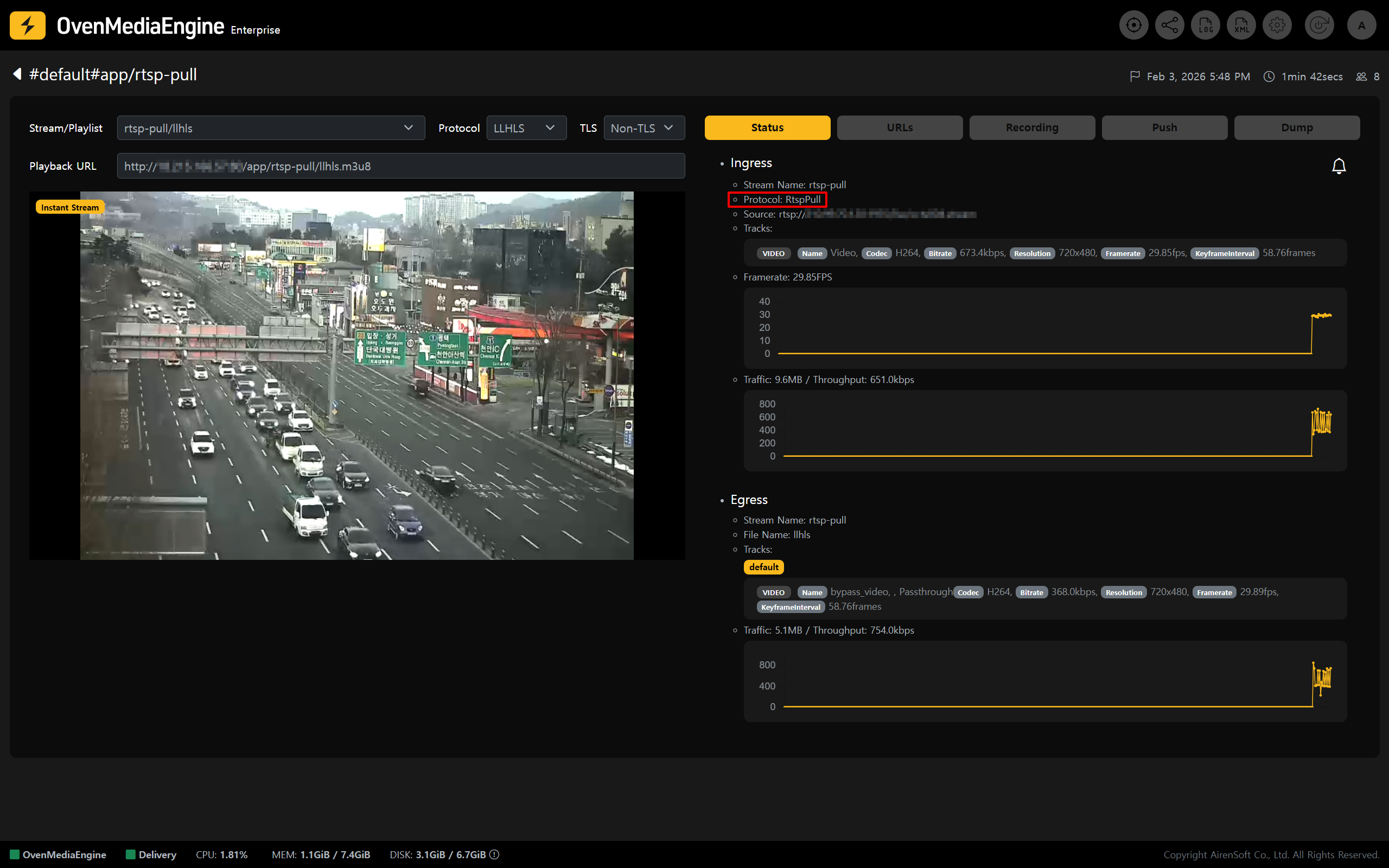

  1. You can view various metadata on the stream details page.
